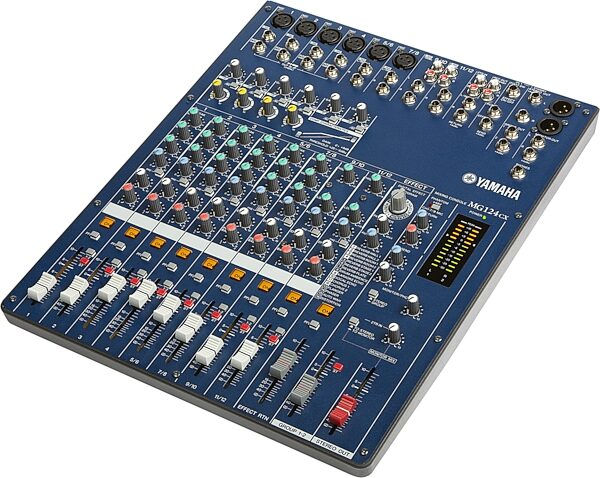

PRE-LOVED YAMAHA MG124CX 12 CHANNEL MIXER
The MG124CX is a lightweight and portable stereo effects mixer that offers 12 channels, four buses, and a wealth of advanced features. It features pre/post switchable AUX sends on all channels as well as Effect send controls that adjust the level of the signal sent to the mixer's internal multi-effect system. The MG124CX is small and light enough (only 2.9 kilograms) to be tucked under an arm and set up just about anywhere.
Flexible 12-input Configuration
MG124CX has a total of 12 input channels -- 4 mono microphone/line inputs and four stereo line inputs. Two of the stereo line inputs can also function as mono microphone inputs, giving you up to 6 simultaneous mono microphone inputs when needed. Gain trim covers a wide -60dB ~ -16dB range for microphone input, and -34dB ~ +10dB for line input.
Comprehensive, Easy-access Connector Panel
Top-mounted input and output connectors make setting up and re-patching your system quick and easy. Both models feature high-quality Neutrik(r) balanced XLR connectors on all 4 mono microphone/line channels and 2 of the stereo channels. The XLR-equipped stereo channels can accept mono microphone input either via the XLR or phone jack connectors. The remaining stereo channels provide phone jack and pin jack connectors for compatibility with a wide range of sources. The 4 mono input channels also feature insert I/O connectors that let you patch external signal processing gear into those channels as required. Separate pin-jack 2TR inputs are provided to accept the output from a CD player or similar stereo source.
Six High-performance Microphone Preamps
The microphone preamplifiers in any mixer are critical to its overall performance. The microphone preamps built into the MG mixers inherit technology from Yamaha's top-line professional consoles, and have been painstakingly designed to deliver superior sonic performance with any dynamic or condenser microphone. All 6 microphone preamps feature switchable phantom power so you can take advantage of the natural, extended response of high-quality condenser microphones. A single switch turns phantom power on or off for all microphone channels.
Built-In Channel Compressors
Built-in channel dynamics are usually only found on high-end (and very expensive) consoles. The MG124CX features Yamaha's innovative 1-knob compression feature on mono input channels 1 through 4. This advanced feature can be a tremendous advantage in achieving great vocal sound. It can also be used to refine the sound of bass, guitar, and other sources. Conventional audio compressors with their threshold, ratio, knee, makeup gain and other controls can be complex and time-consuming to set appropriately for a given source. Yamaha's one-knob compressor eliminates the need for an engineering degree with a single control that lets you simply dial in the amount of compression you want.
3-Band Channel EQ and High-pass Filter
Yamaha has decades of experience in building truly useful, musical equalization into successful pro consoles, and the channel equalizers in MG-series mixers carry on without compromise. Channels 1, 2, 3, 4, 5/6, and 7/8 feature full 3-band equalizers with Low, Mid, and High controls, while 9/10 and 11/12 have 2-band EQ for smooth equalization of stereo sources.
4 Buses (Stereo and Group)
In addition to the main stereo bus the MG124CX features a stereo group bus and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.
Master & Output Section
The MG124CX has pre/post switchable AUX sends on all channels as well as Effect send controls that adjust the level of the signal sent to the mixer's internal multi-effect system.
Stereo, Control Room, Monitor, and Headphone Outs
Located above the mixer's master controls, on the convenient easy-access connector panel, are the main stereo output connectors, phone-jack monitor output connectors, pin-jack recording outputs, and a stereo headphone jack. These versatile mixers offer plenty of connectivity for a wide range of applications.
Bright Meters for Visual Level Monitoring
Accurate visual level monitoring can help you achieve maximum signal-to-noise ratio without distortion. The MG mixer's bright, easy-to-read 12-segment LED meters make it easy to control system levels for optimum overall performance.
Smooth 60-millimeter Faders
Channel and master level control is accomplished via reliable, high-performance 60-millimeter linear faders that provide smooth, noise-free operation. An important advantage of linear faders is that they provide a direct visual indication of relative level settings.
